The entire inner wheel-well assembly on this car’s LH side was shot, so we carefully patterned the original and built an exact replica…
-

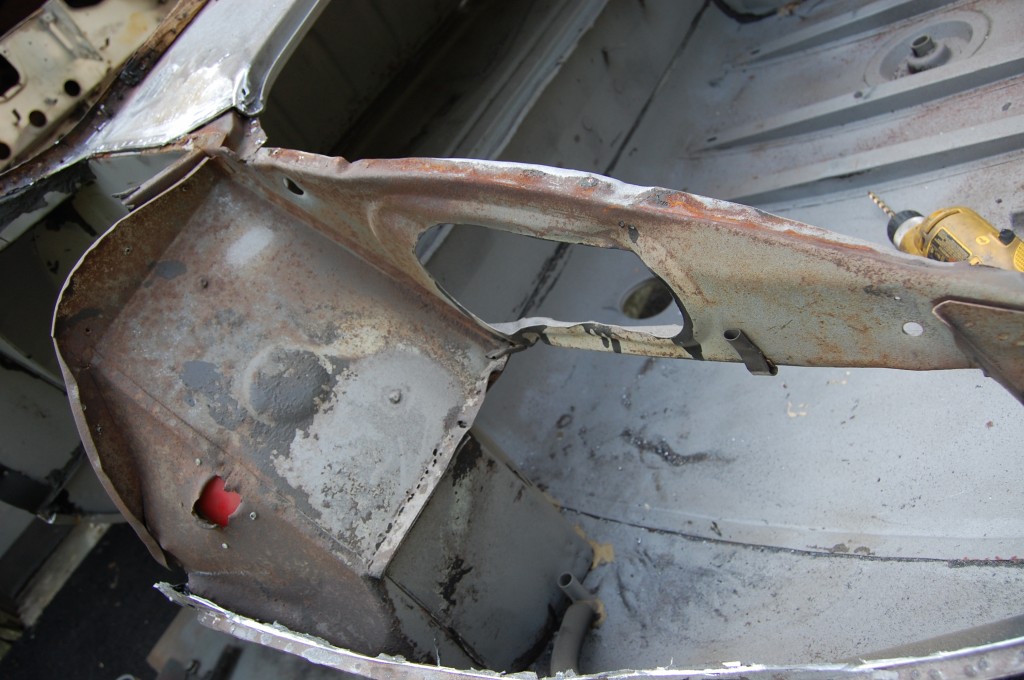

- A combination of rust and accident damage doomed this assembly to the scrap can…
-

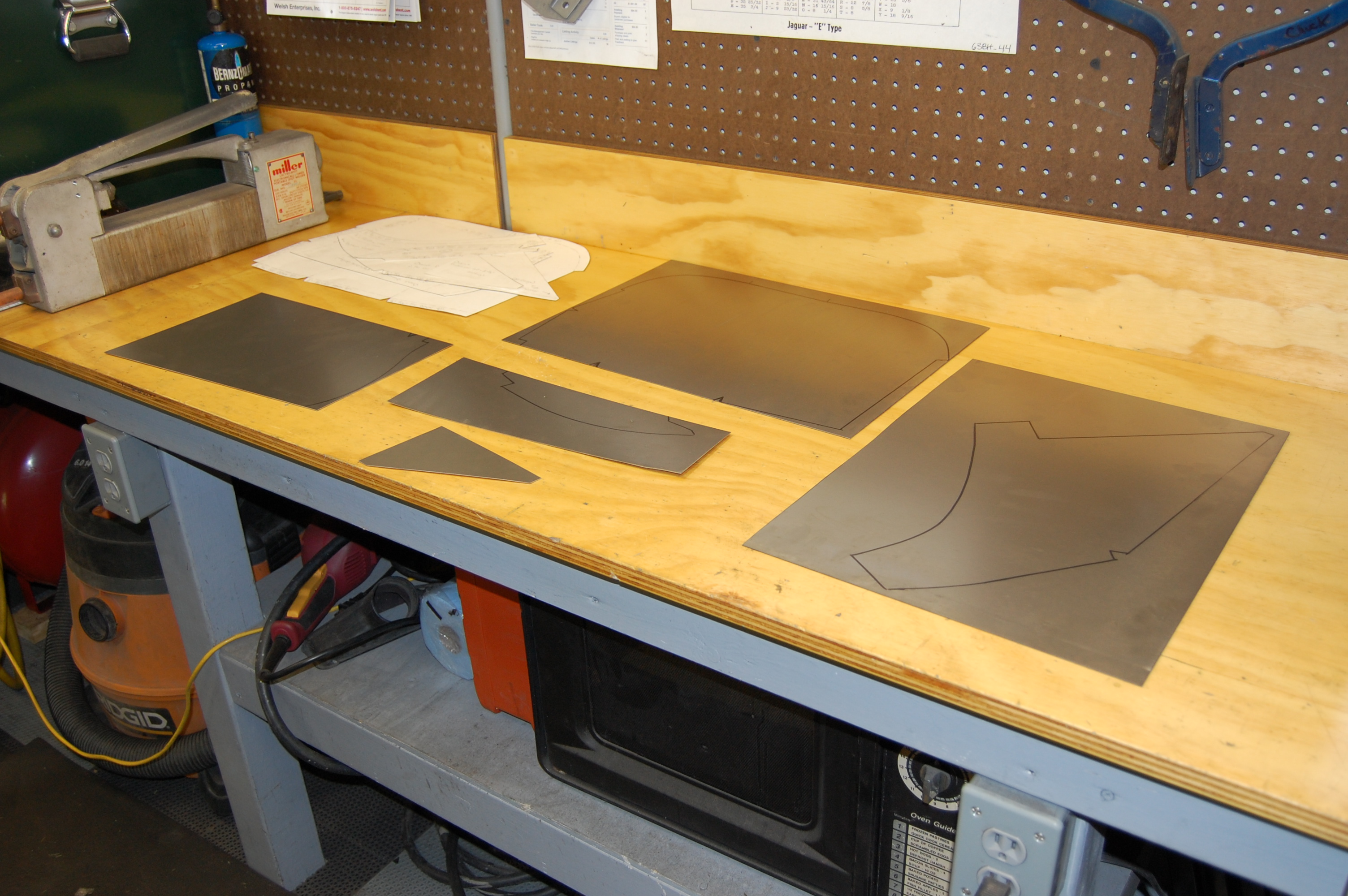

- Patterns made and blanks cut.
-

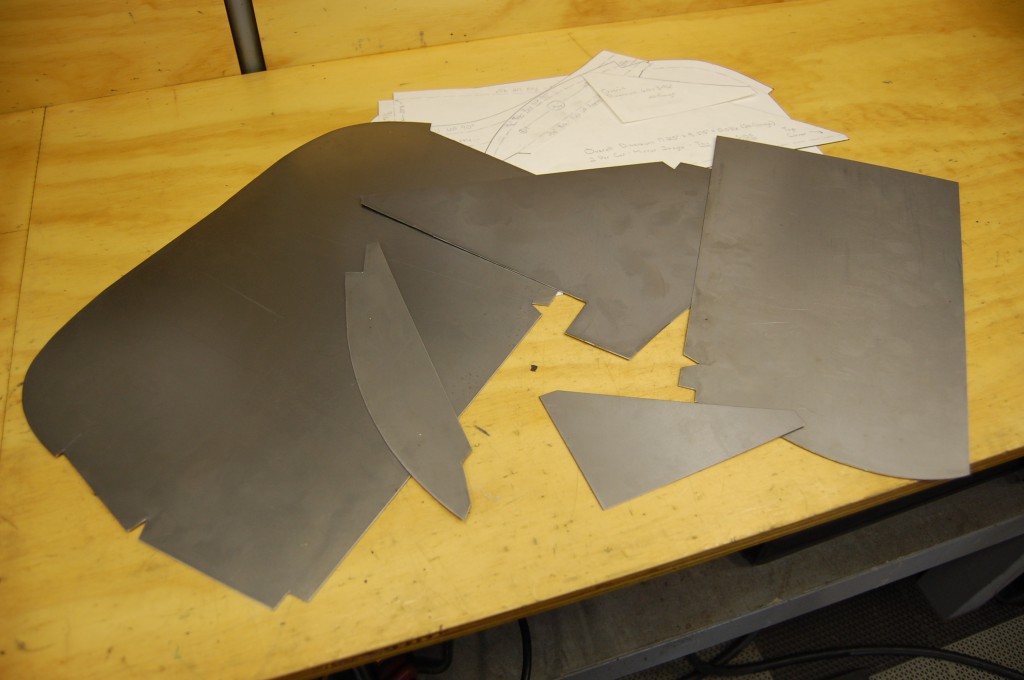

- Pieces cut and ready for shaping.
-
- The first piece completed. This piece is the same on all cars and is often the ponly portion of this assembly that needs to be replaced. We offer these as an alternative to purchasing the entire assembly – the only way the “other guys” offer this panel…
-
- Step 1 – this little triangle serves to line everything else up.
-

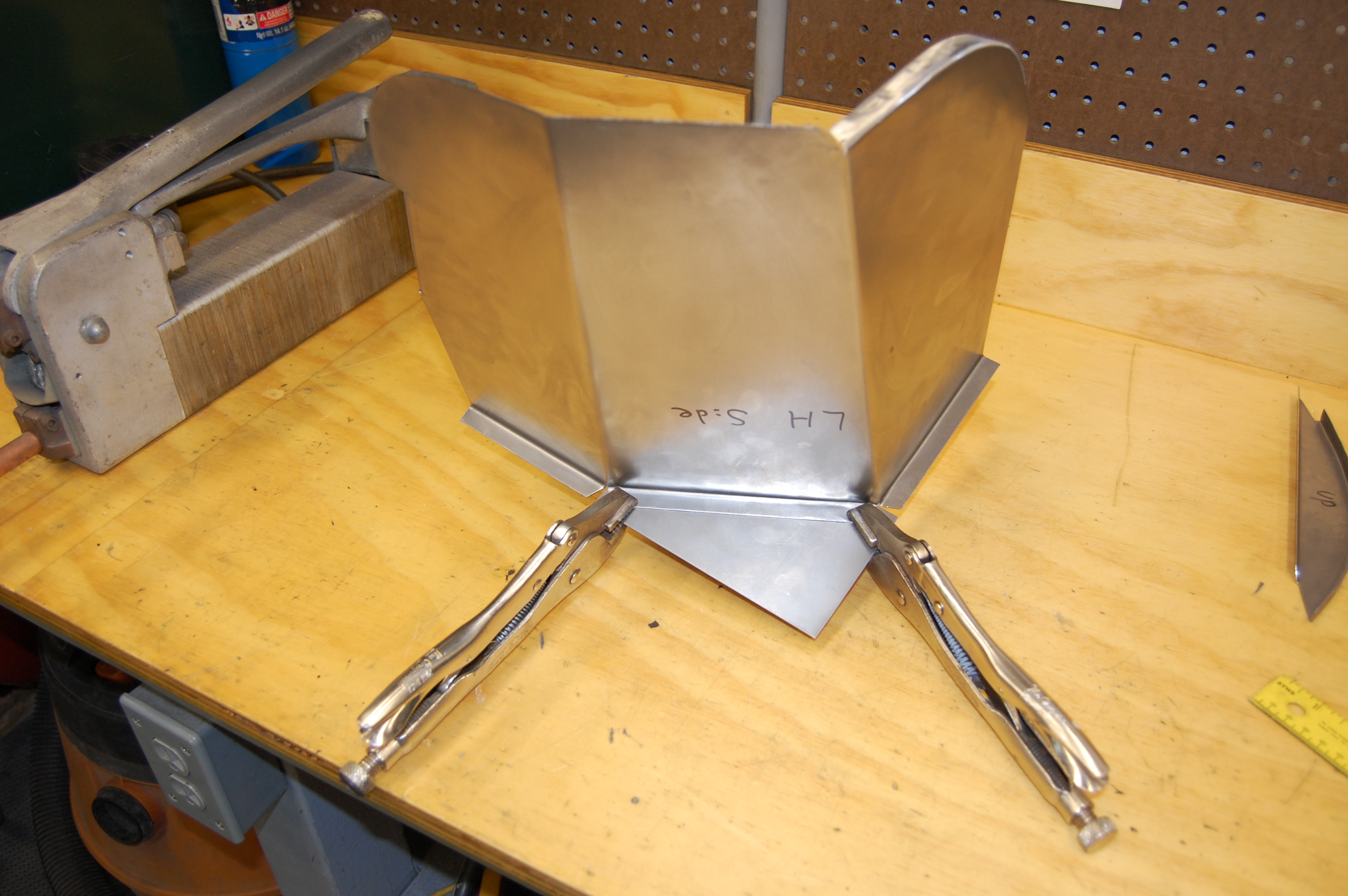

- Step 2 – top piece attached.
-

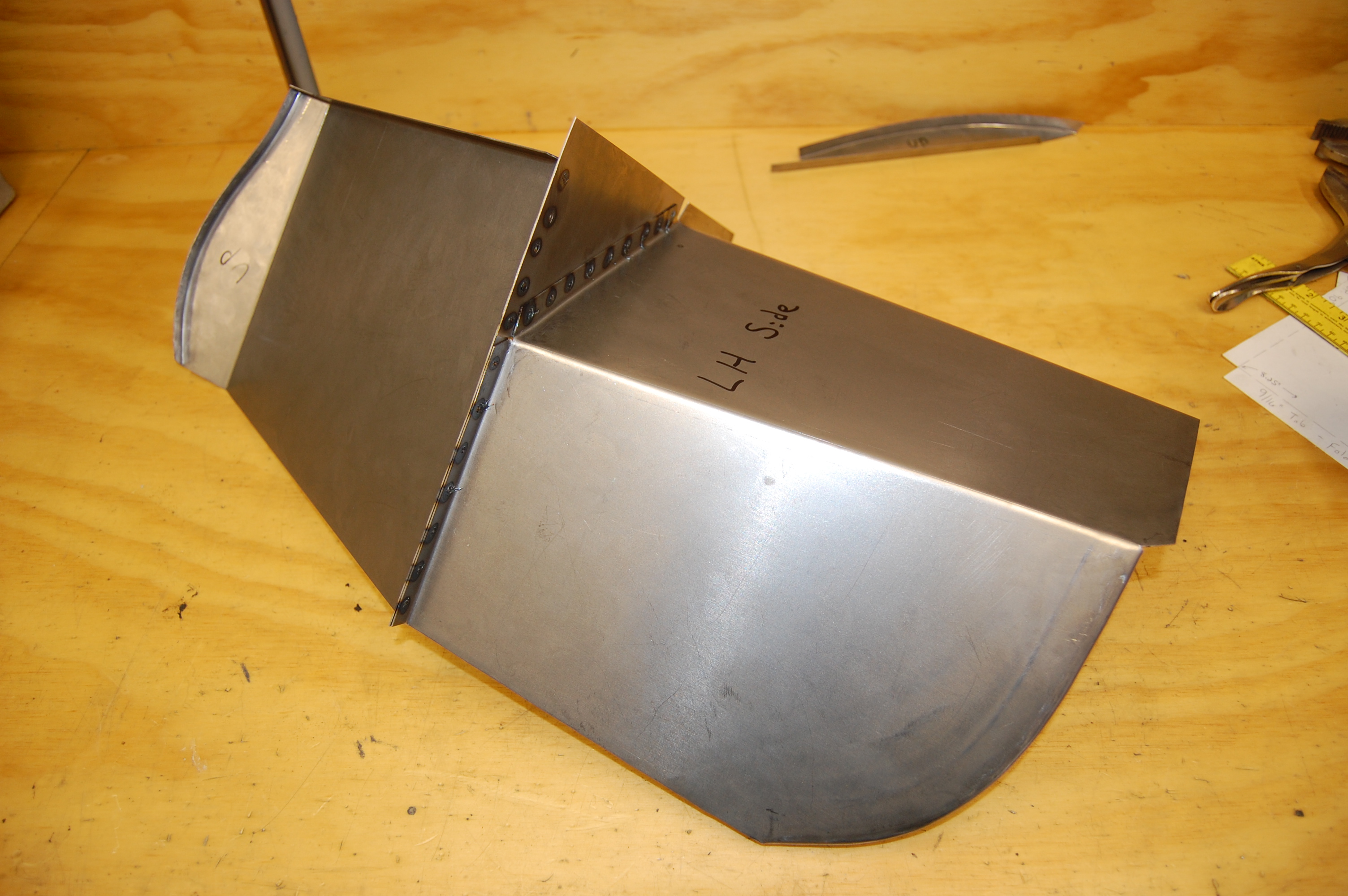

- Step 3 – side panels added – this shape was a little tricky…
-

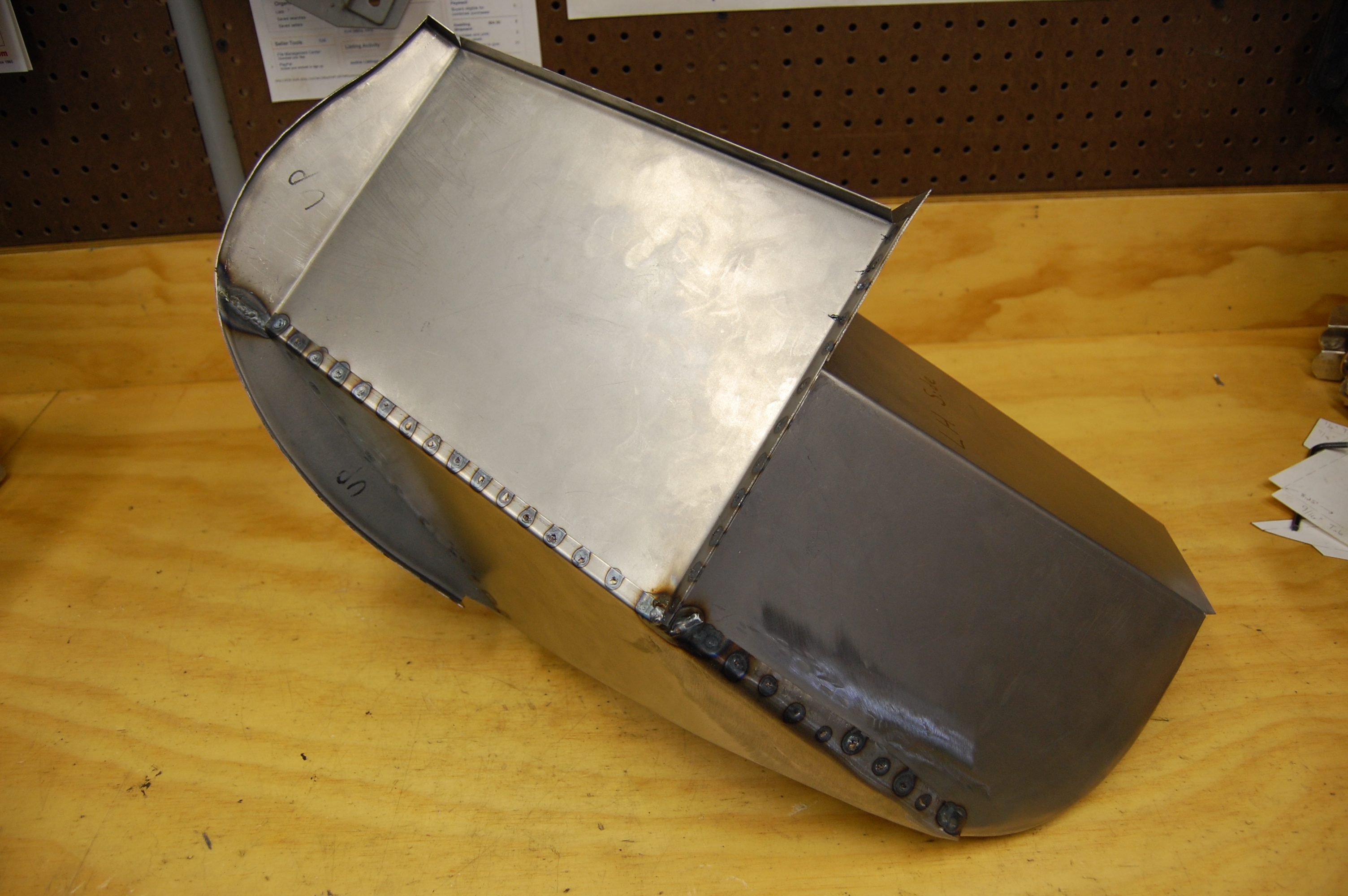

- Another angle…
-

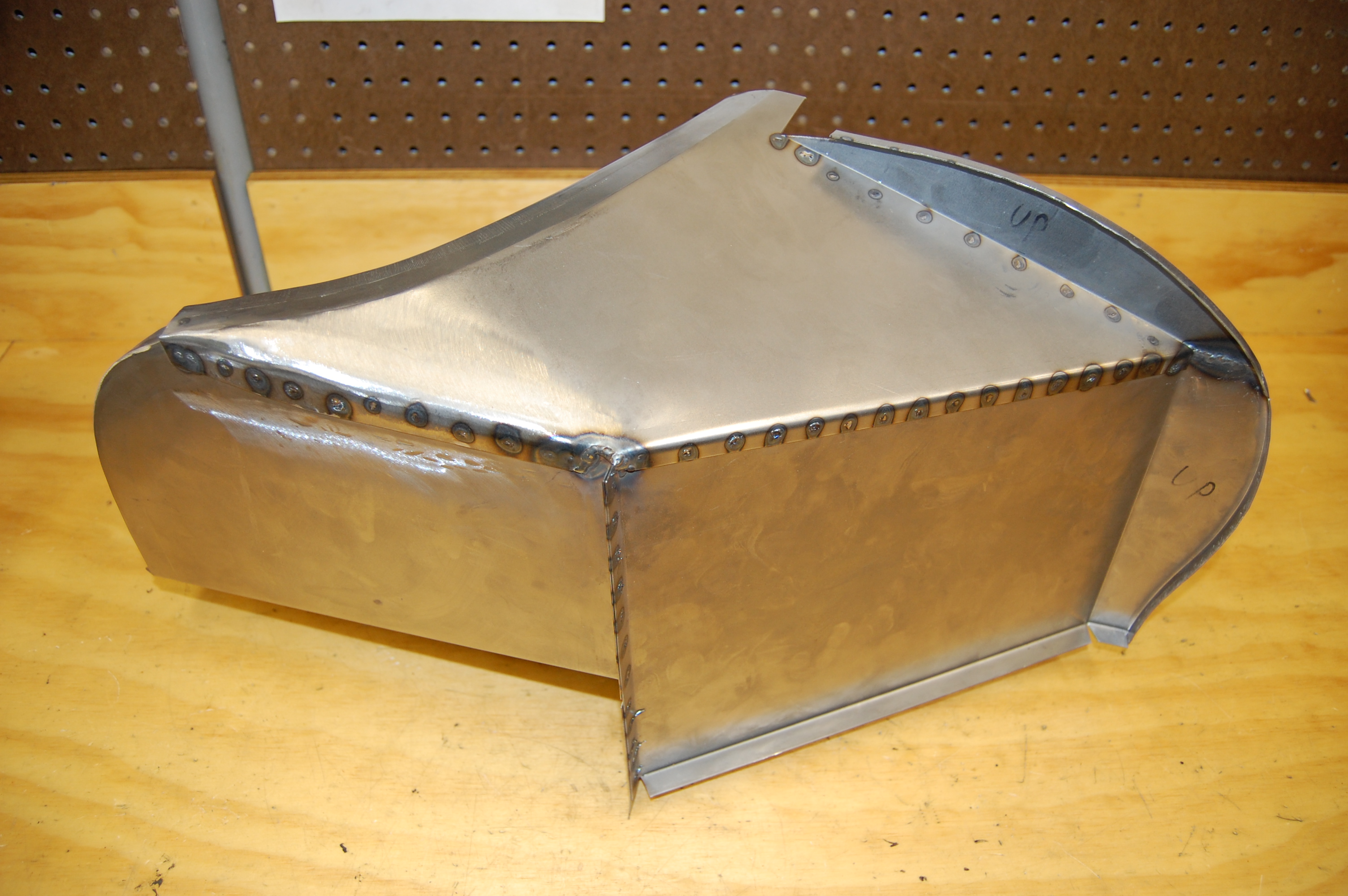

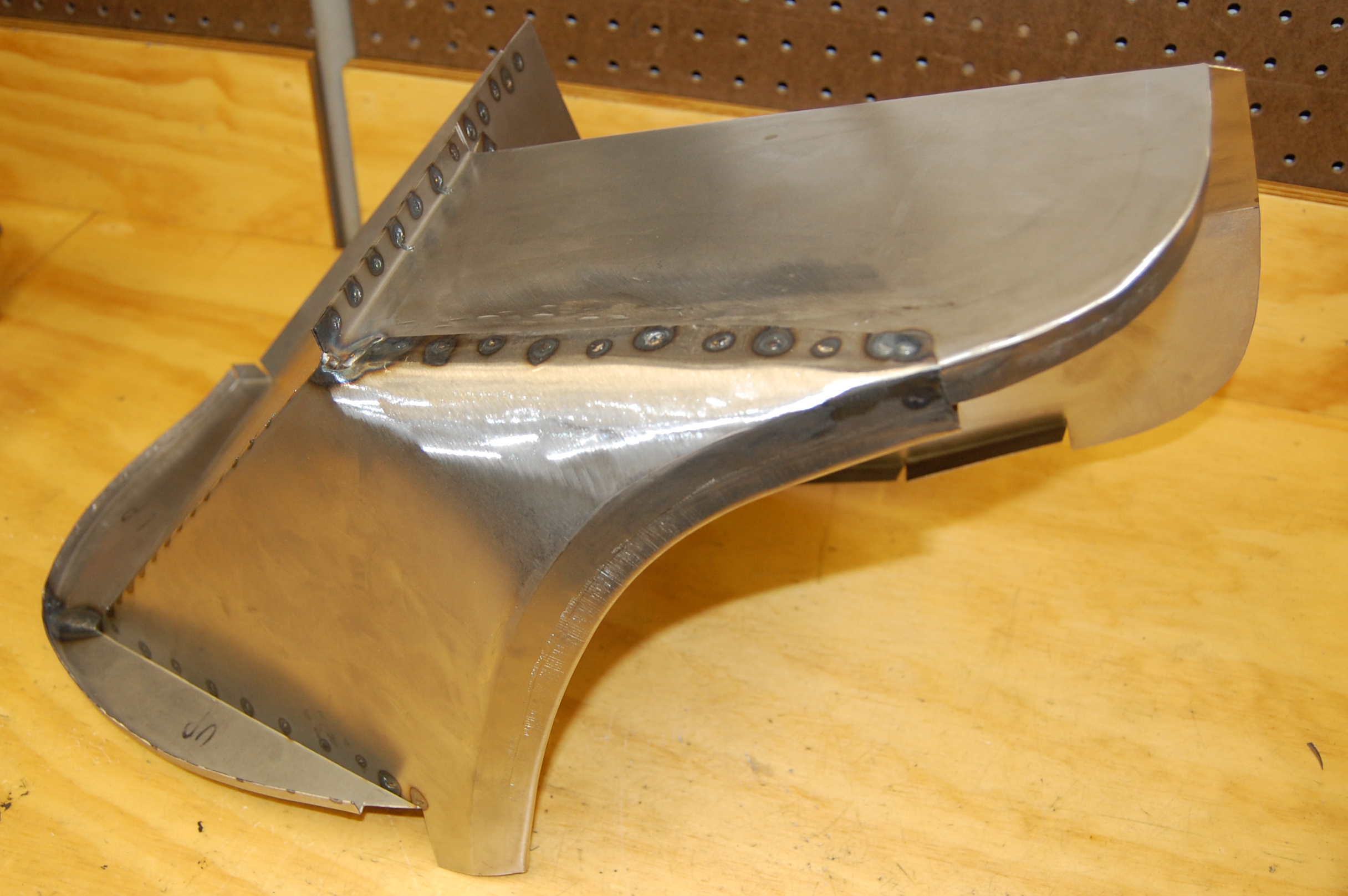

- And yet another angle – this assembly is absolutely correct in every dimension.
-

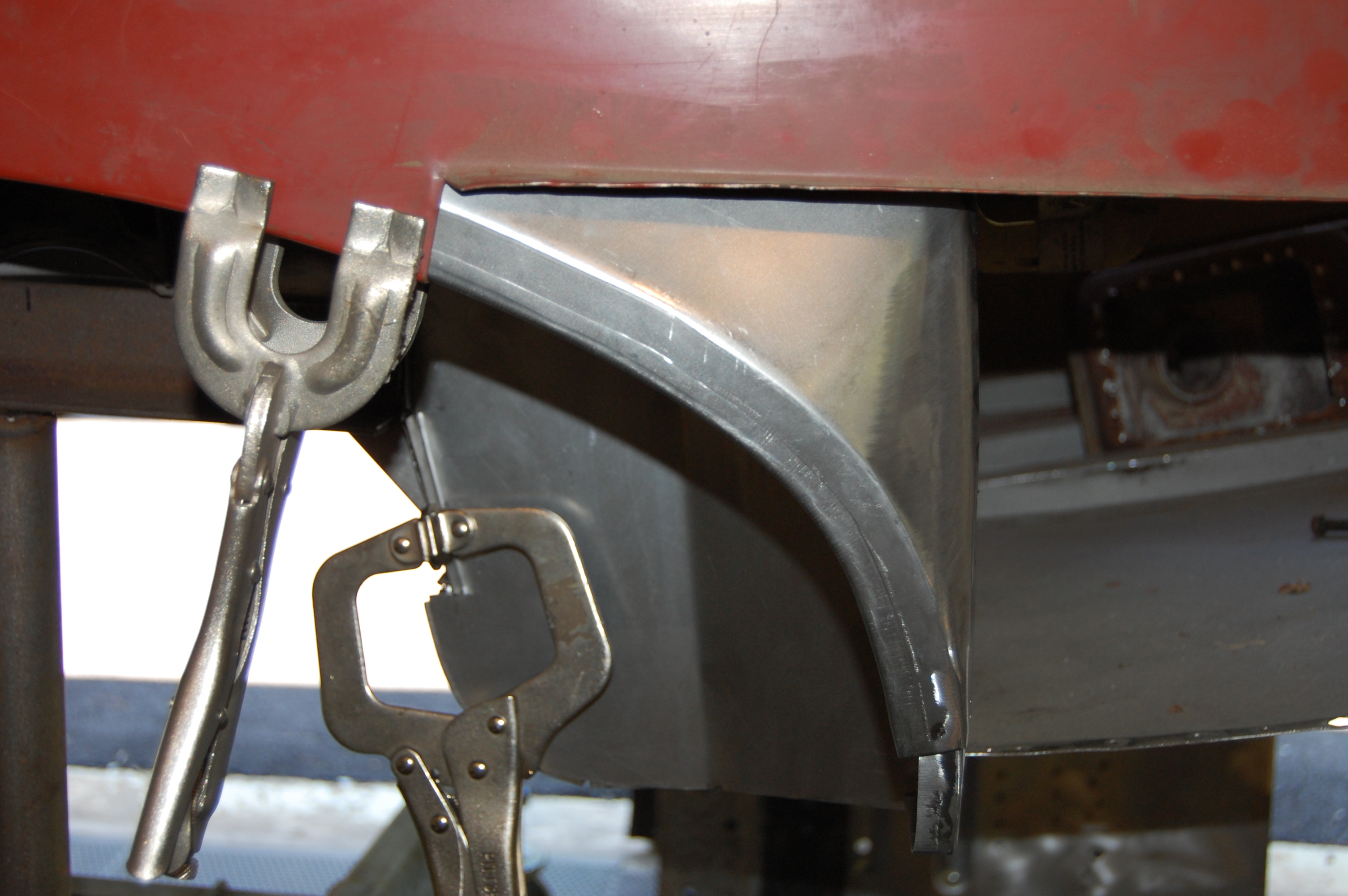

- It completes the curvature of the wheel opening exactly.
-

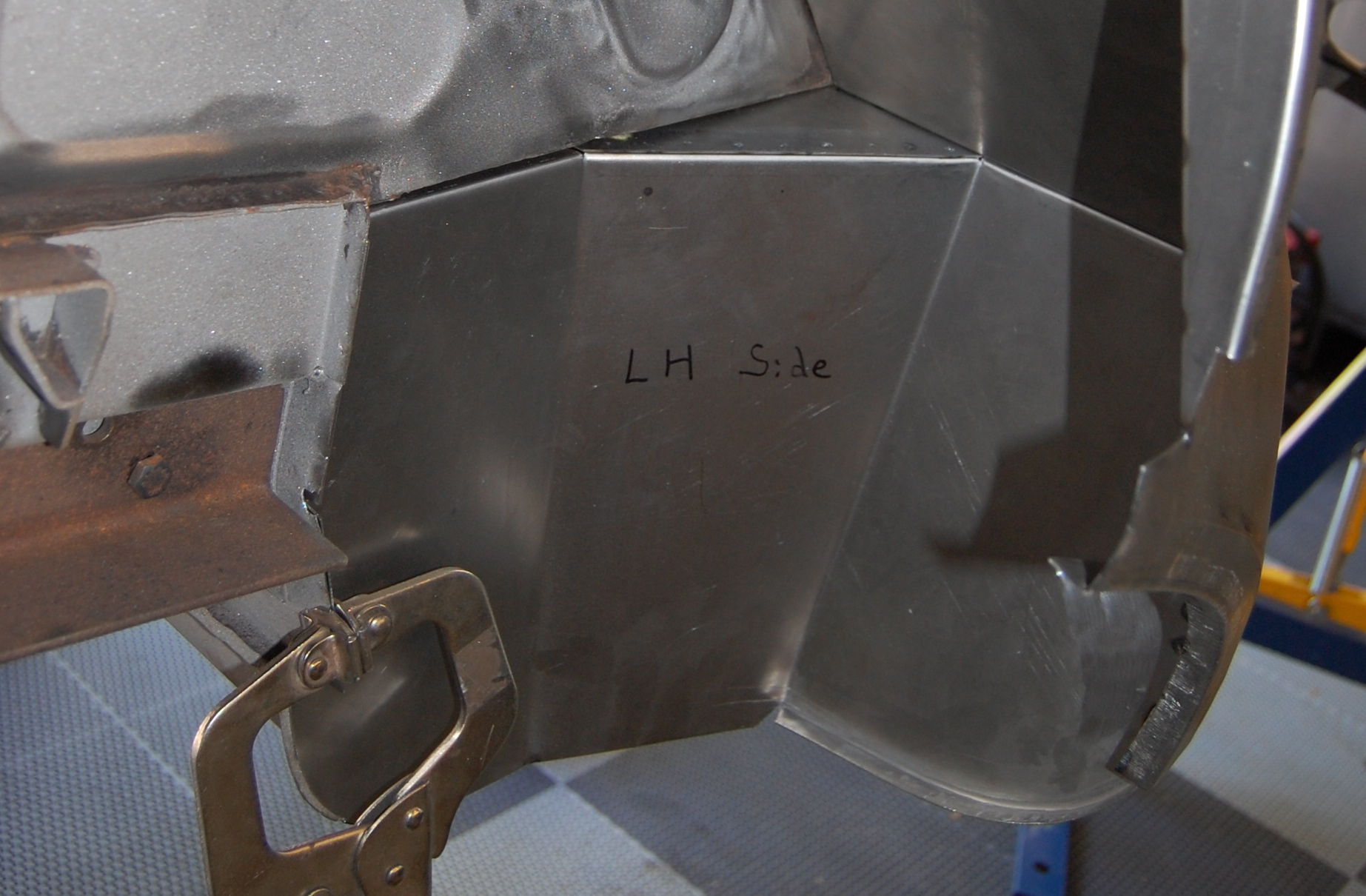

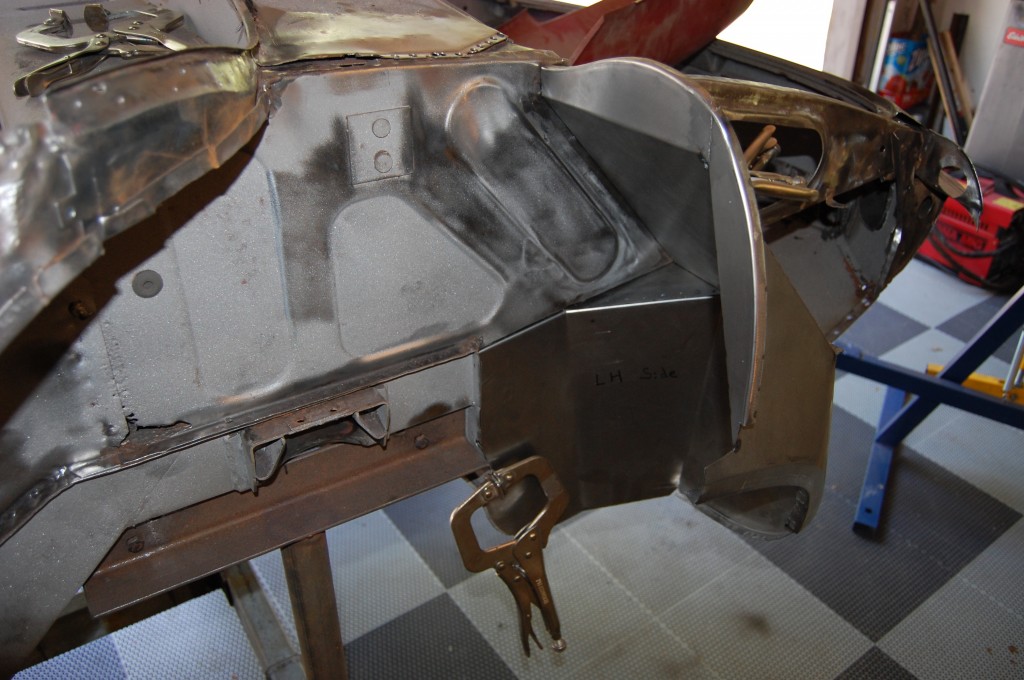

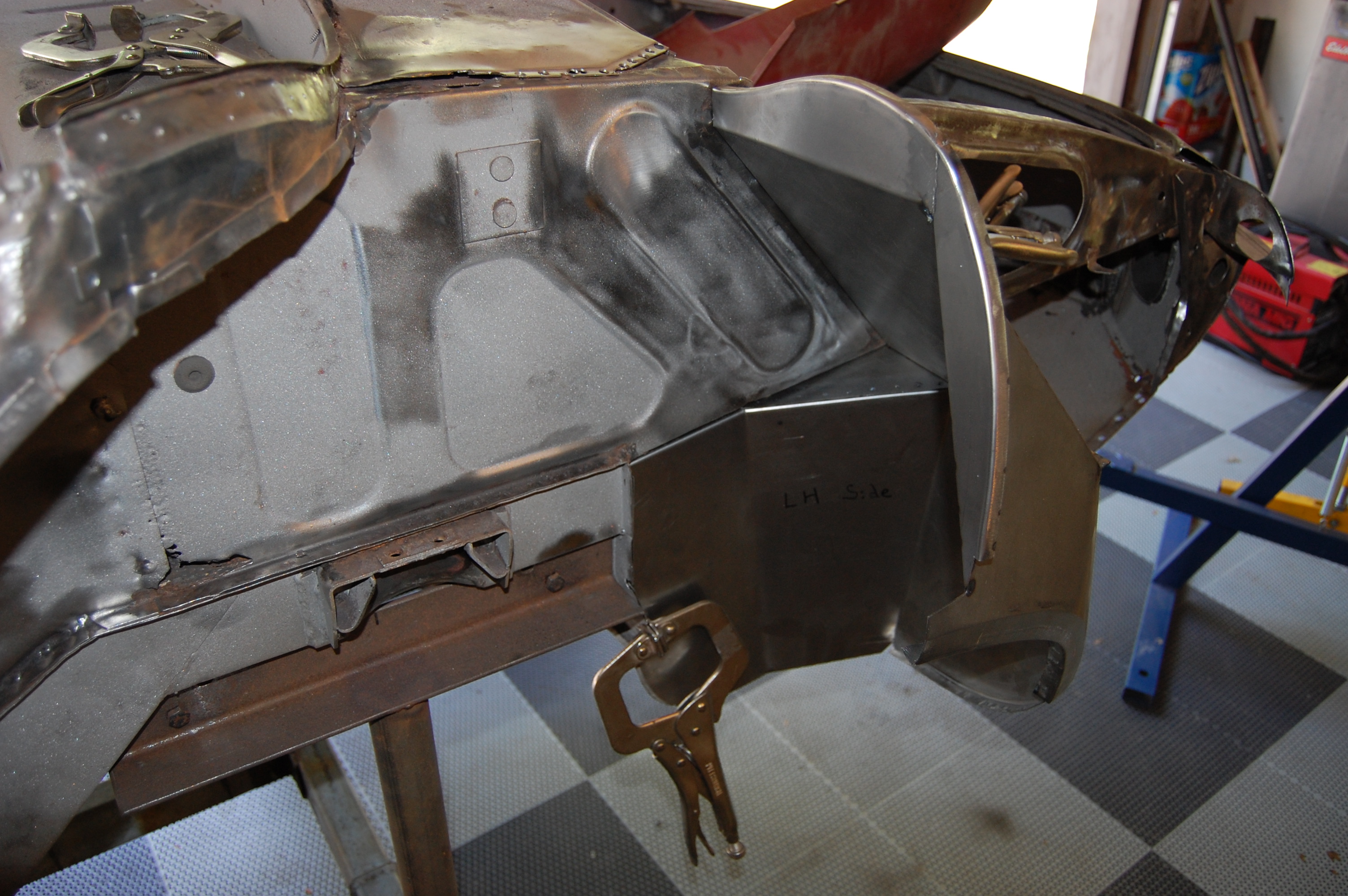

- MUCH better – the new assembly is now mated to the reshaped inner boot side – you can expect this level of quality in everything we do here.
-

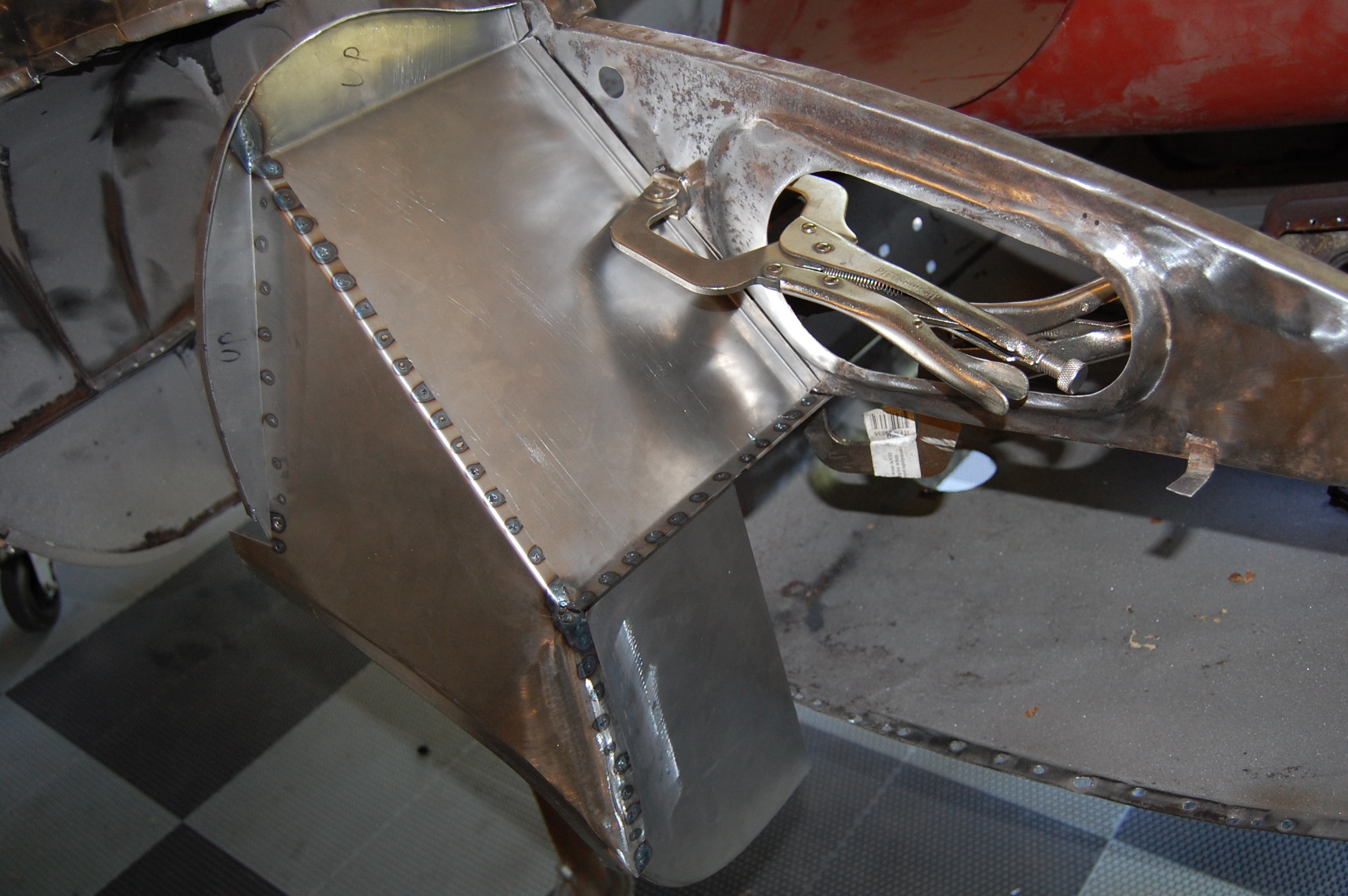

- From the front…
-

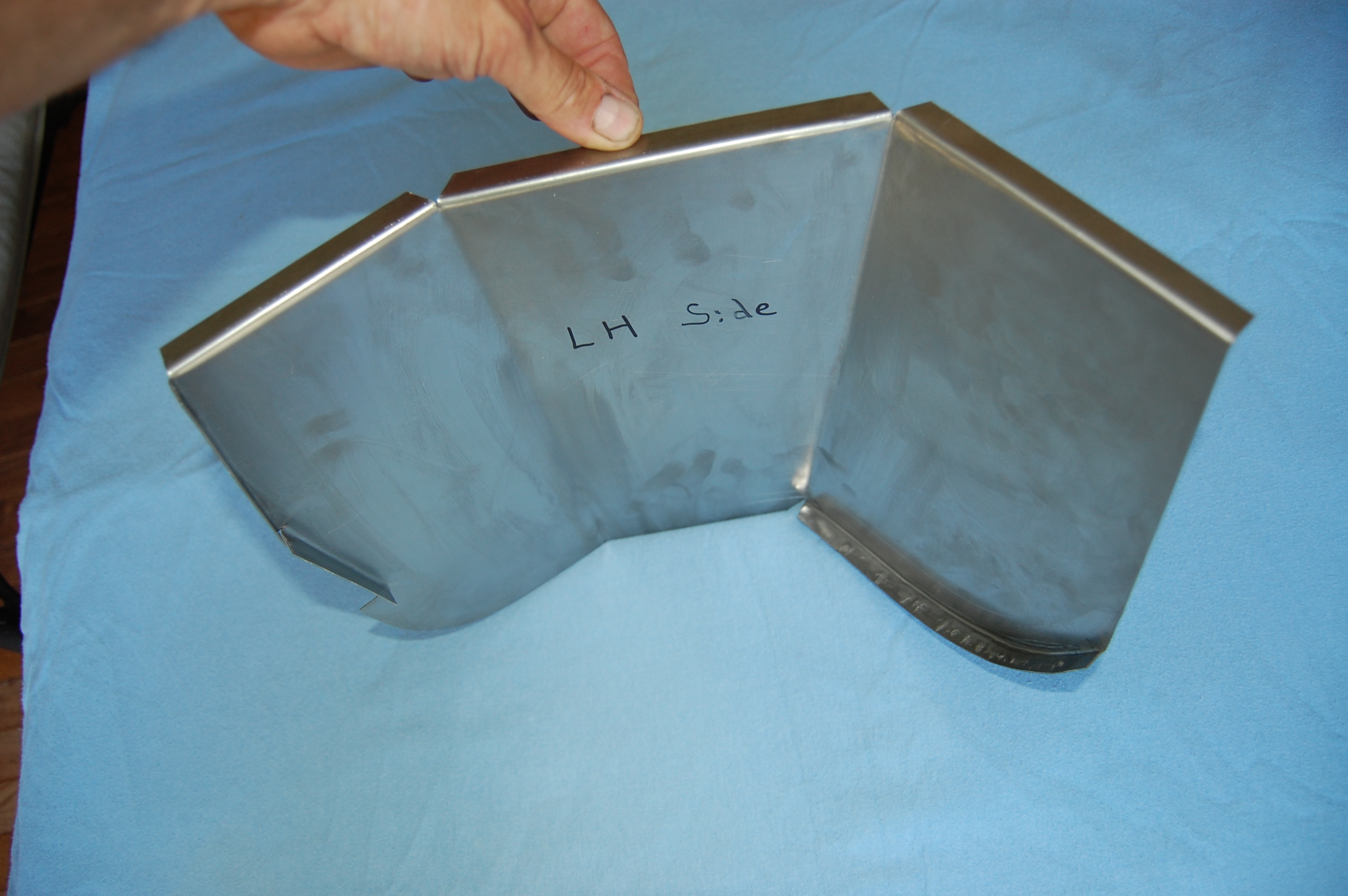

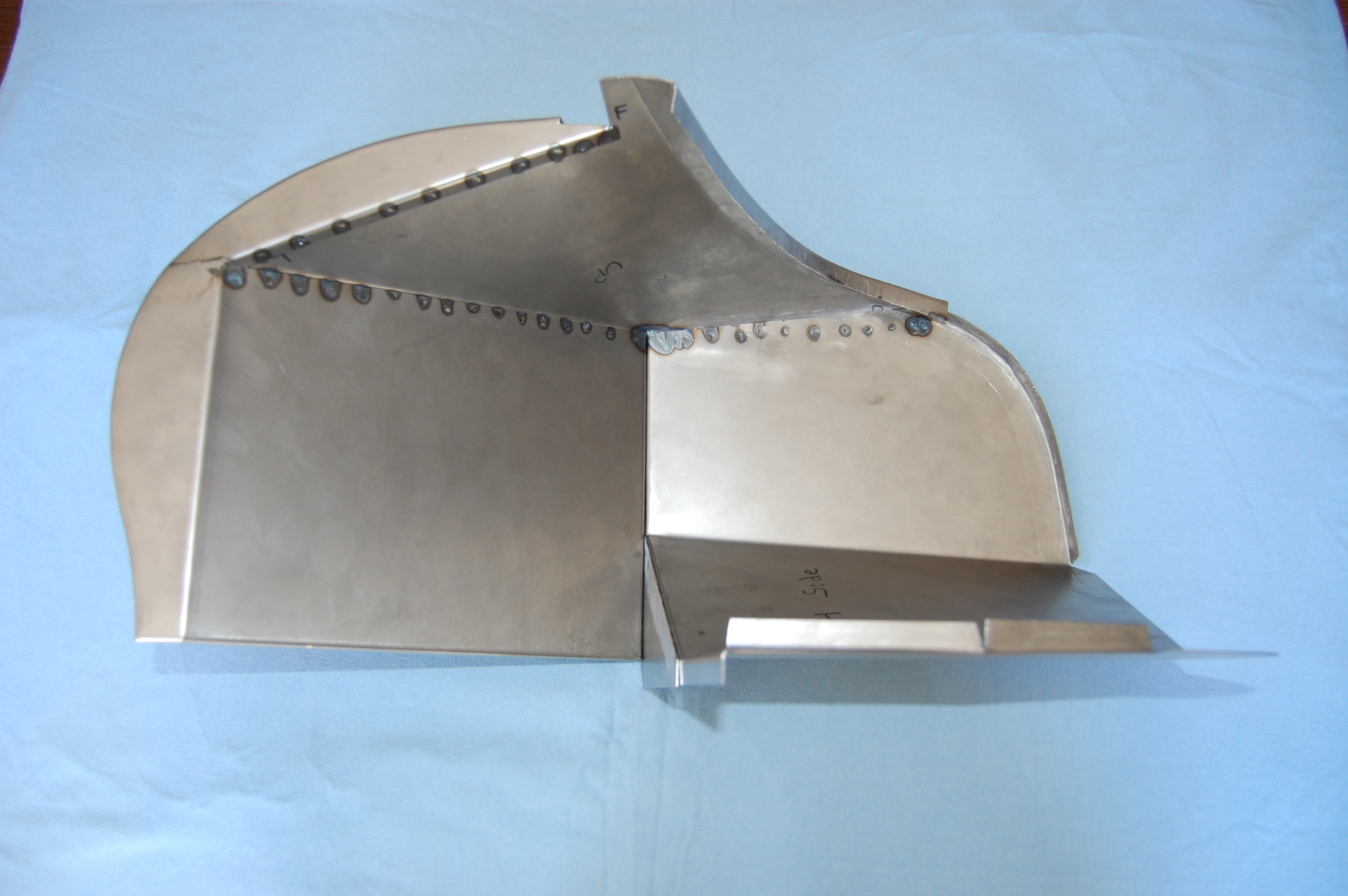

- A shot of the bottom piece – if you just need this lower panel – give us a ring!
-
- OR – we can offer you an entire new inner wheel well – or ANY other panel your E-Type requires!
